AHD CCTV 4 CHANNEL KIT FULL HD 1080P ALL OUTDOOR CAMERA
Product details of AHD CCTV 4 CHANNEL KIT FULL HD 1080P ALL OUTDOOR CAMERA
- 1 X 4CH AHD-NH 1080N DVR NVR HVR 3 IN 1 Network Digital Video Recorder
- 4 x AHD 1080P 2.0MP 1/3" inch indoor outdoor IR Day Night vision waterproof cameras
- 4 X 65feet(20m) cctv video cable for camera
- 1 x 12V/3000mA power adapter for cameras
- 1 x 12V/2000mA power adapter for DVR
- 1 X 1 to 4 power splitter Cable
- 1 X USB Mouse for DVR
- 1 X Software CD for DVR
- 1 X remote control for DVR
- AHD/DVR /NVR /HVR 3 IN 1
4CH AHD DVR System Support: AHD/DVR / HVR / NVR 3 IN 1
What is DVR /NVR /HVR 3 in 1?
DVR:Digital Video Recorder.
NVR:Network Video Recorder.
HVR:High Definition / Hybrid Digital Video Recorder.
Support P2P technology, the CCTV DVR can be linked through the internet without any complicated port mapping.
- Backup Via USB Drive. Remotely activate and View Via the Internet from anywhere and anytime.
- Support 4 channel simultaneous live viewing via your smart phone.
- Support Capture and Record in your smart phone.
- Support Cloud System For Remote Access/Support HDMI Output.
- PC surveillance software and mobile phone client are included, very easy remote network surveillance
- Easy to install, simple to use and at a low price.
- Setup a CCTV DVR security system to protect your home,shop and office.
- Backup Via USB Drive. Remotely activate and View Via the Internet from anywhere and anytime.
- Support 4 channel simultaneous live viewing via your smart phone.
- Support Capture and Record in your smart phone.
- Support Cloud System For Remote Access/Support HDMI Output.
- PC surveillance software and mobile phone client are included, very easy remote network surveillance
- Easy to install, simple to use and at a low price.
- Setup a CCTV DVR security system to protect your home,shop and office.
NOTICE: This camera needs to access AHD DVR.
Best choice for project reconstruction!!You can upgrade an existing analog security system
to 1.0MP/1.3MP/2.0MP HD camera system without changing cable routes.
1) Applying high performance sensor, the image is clear and delicate
2) Support IR-CUT dual filter switch, to achieve day and night monitoring, color is not partial or distortion
3) Analog HD 1080P @AHD video output
4) Transmission distance up to 500 meters
5) Support ultra low illumination
6) Support automatic electronic shutter function, adapting different monitoring environment
7) IR distance : 40 meters

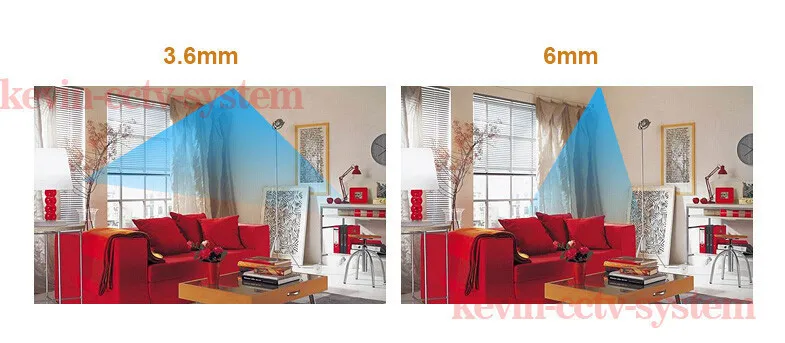

8) Camera lens choices : 3.6mm
- AHD-NH 1080N High Resolution
AHD-NH 1080N High-definition interface output,Support for online playback,Mobile remote,Multi-window display
With AHD-NH1080N resolution,the angle will be more larger,and the image will be more clearer

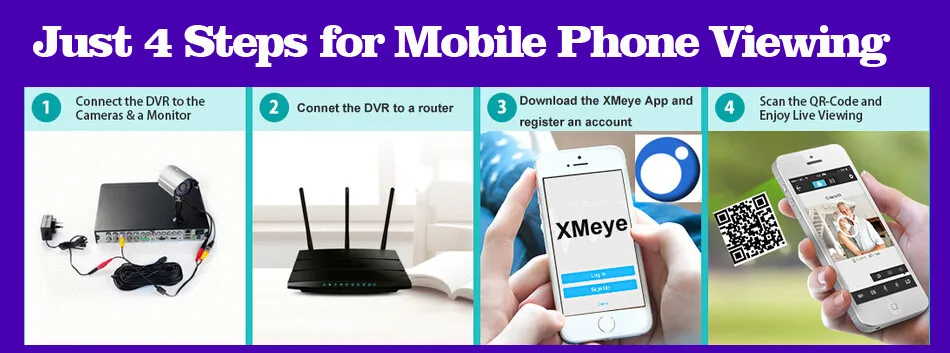

P2P Cloud Access via Smart Handsets
1> Connect the Camera to DVR
2> Connect the DVR to Network
3> Scan QR for Mobile APP
4> Scan QR for S/N via APP and Enjoy Live Viewing
Just 4 Steps for Mobile Phone Viewing!!!!!!
- H.264 HD Video Compression
Compared with other existing video coding standards,Provide better image quality under the same broadband.
- HDMI 1080P & VGA Video Output
The DVR is configured the VGA and HDMI(1080p) connector.
You can connect diretly to high-definition televisions,computer monitors,it is so easy and Convenient.
You can connect diretly to high-definition televisions,computer monitors,it is so easy and Convenient.

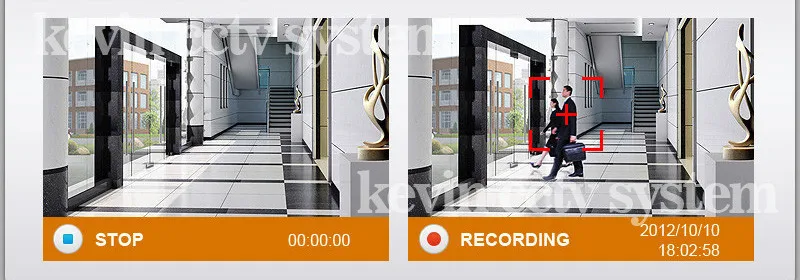

- Motion Detection Alarm
When the camera to shoot someone stealing your belongings,will send photos via email to your phone,so So you are not at home,peace of mind...
- Instant Email Alerts if Activity Detected
This business surveillance system is designed to send an email alert, complete with photo the activity,if any motion is detected,or if any camera experiences video loss.
- Easy USB Backup
A built-in USB port gives you the option of backing up and transferring your video footage with a USB flash drive or external USB hard drive .2 USB 2.0 port for Mouse and backup operation convenience.
- Scheduled Recording Options
Choose the specific days of the week and hours of the day you would like your DVR to record or not record.Each individual camera can be set with its own personalized schedule.

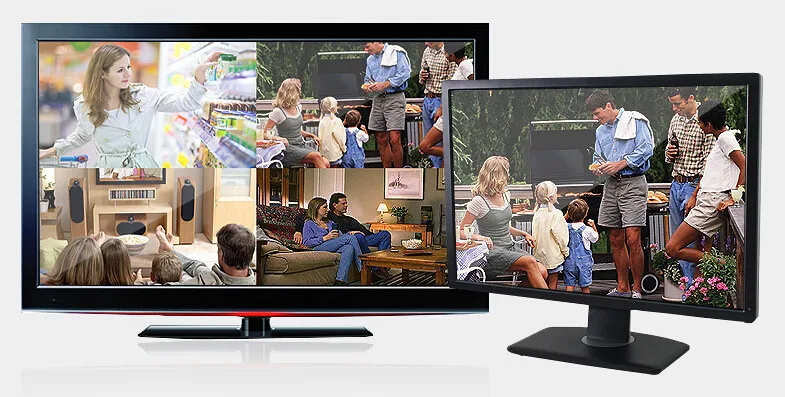

- View from a TV or PC monitor
A TV can be used with an AV cable, while a PC monitor can be used with a VGA cable,This gives you more connection options while viewing activity captured by your cameras.

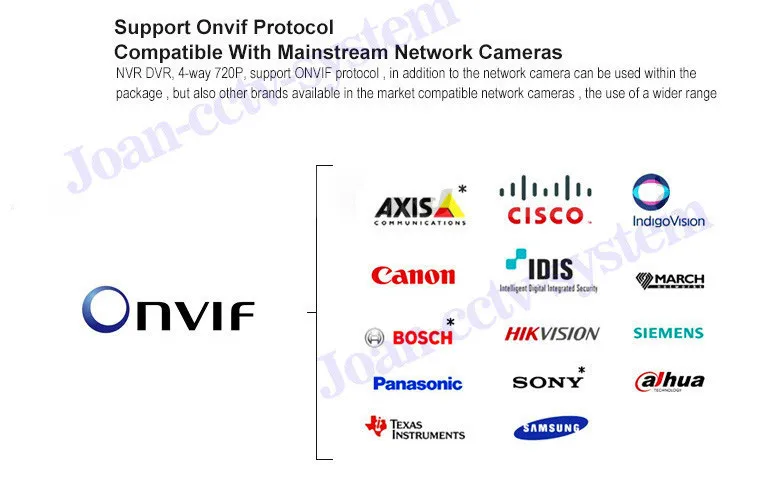

- Supports Onvif Protocol
- Supports Multiple Languages
English,Spanish,German,French,Russian,Japanese....etc.
- Advanced Motion Dectection Recording
The motion detection options allow you to record only when motion is detected to save hard drive space without missing important events.
You can even ensure that false alarms are avoided by setting the motion detection"mask"to block areas with constant movement.
You can even ensure that false alarms are avoided by setting the motion detection"mask"to block areas with constant movement.
- Remote Access
Check it out,Anywhere,Anytime...
- At all time
This camera security system allows you to view your footage,no matter the time or location.Access your DVR's footage over the internet,or directly from your Android ,Symbian,Windows Mobile,Ipad,iphone or Blackbetty.
IR Cut Filter Provides accurate color reproduction in all lighting conditions.
Day & Night Monitoring with Built-in IR-Cut filter

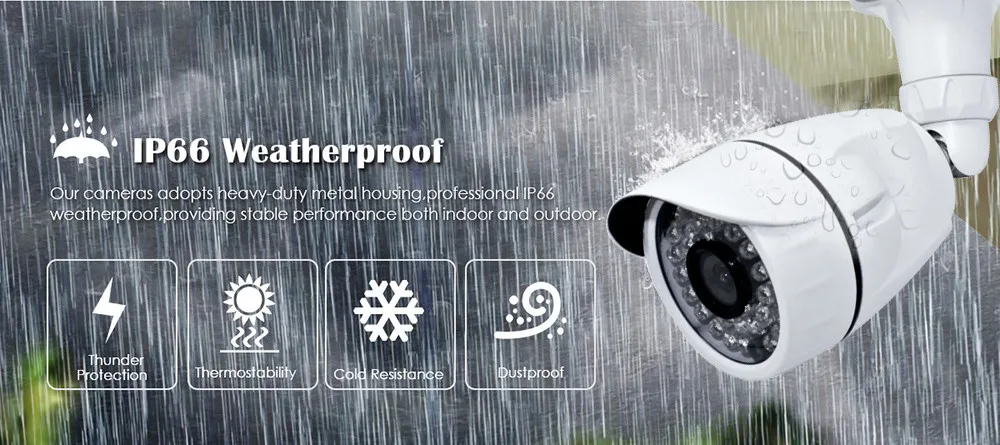

IP66 Professional outdoor weatherproof
Indoor/Outdoor Applicable(Camera performs both in outdoor and Indoor applications).
AHD DVR Specifications
| System | Operating system | Embedded LINUX operating system |
| Display | Operation interface | 16 bit real color GUI interface support mouse operation |
| Display | 1/4CH | |
| Video | Video standard | PAL(625 lines,50fps);NTSC(525lines,60fps) |
| Compression | H.264(High Profile) | |
| Display quality | Monitor:1080P;VGA:1280*1024;HDMI(1920*1080P) | |
| Playback quality | 1080p/960P/720P/960H/D1 | |
| Record Resolution& Frame | PAL: 1080N/960P/720P/960H/ D1@100fps | |
| NTSC:1080N//720P/960H/D1@120fps | ||
| Playback Frame | PAL: 1080N/960P/720P/960H/ D1@100fps | |
| NTSC:1080N/960P/720P/960H/D1@120fps | ||
| AHD mode input | 4*1080N(analog) / 4*960H(analog)/2*1080N(analog)+2*720p(digital) | |
| Motion detection | 192(16*12)detection area;can set multi-level of flexibility | |
| Audio | Audio compression | G.711A |
| Record and playback | Record mode | Manual,alarm,motion detection,timing |
| Local playback | 4CH 1080N/960P/720P/960H/D1 | |
| Video search | Time,date,event,channel search | |
| Storage and back up | Space occupation | Video:CIF 4~5G/day*channel, D1 16~20G/day*channel; |
| Audio:691.2M/day*channel | ||
| Video storage | Local HDD ,Network | |
| Back up mode | Network backup,USB portable HDD,USB DVD-RW | |
| Network | Protocol | DHCP,PPPOE,FTP,DNS,DDNS,NTP,UPNP,EMAIL etc |
| IE Browser | Windows IE ,Firefox ,Chrome ,Safari etc. | |
| CMS | Free use | |
| Mobile Phone | Android\ iPhone\ iPad\ Blackberry\ Windows Mobile | |
| Interface | Video input | 4CH BNC |
| Video output | 1CH BNC,1CH VGA,1CH HDMI 1080p | |
| Audio input | 4CH RCA | |
| Audio output | 1CH RCA | |
| Network port | RJ45 10M/100M Ethernet port | |
| PTZ control | 1 RS485;support multi kinds of PTZ Protocol | |
| USB port | 2*USB2.0 | |
| HDD port | 1 SATA(each max support 3TB) | |
| other | Language | English,Finnish,French,German,Greek,Italian,Japanese ,Polish,Portuguese,Arabic,Farsi,Russian,Spanish,Thai,Turkish, etc |
| Mouse | yes | |
| Remote controller | yes | |
| Power | DC12V/2A | |
| Dimension | 250(L) x 235(W) x 45(H) |

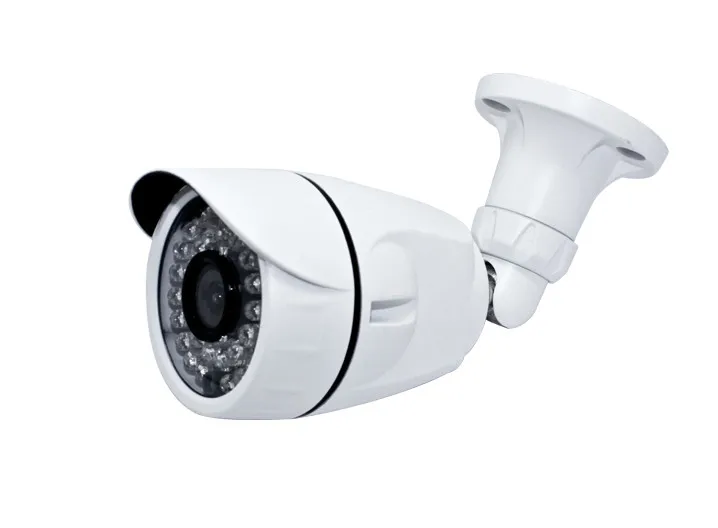

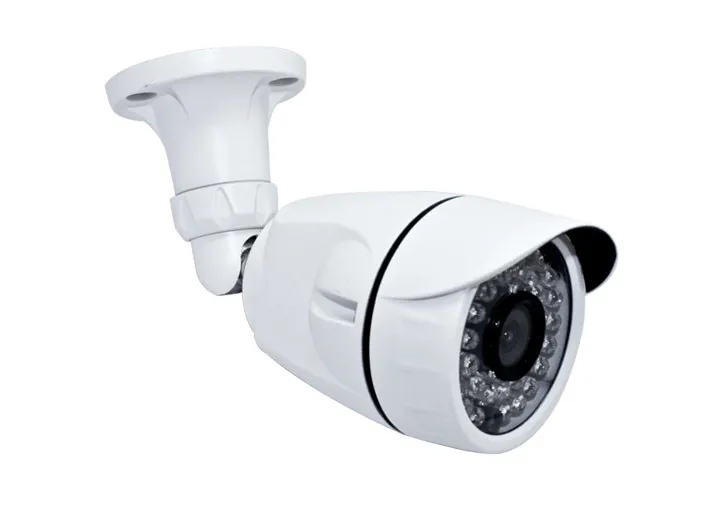

CCTV Camera Specifications
Video
Image sensor:1/3"inch CCD
Video quality:2.0mp 1080P 3000TVL
Lens:3.6mm lens
Day/Night Mode:Color During day/switches to B&W at night
General
Indoor / Outdoor:Suitable for Indoor or Outdoor use
Operating Temperature:-25°F~122°F / -32°C ~50°C
Operating Power:DC 12V
Weatherproof:yes
Minimum Illumination: 0.0 Lux
Body Construction:Bullet with Built-in Wall Mount
Night Vision
Distance:Up to 40m
IR Cut Filter:yes
Number of IR Lens:36pcs
BUY NOW!!!
Specifications of AHD CCTV 4 CHANNEL KIT FULL HD 1080P ALL OUTDOOR CAMERA
What's in the box:
- 1 X 4CH AHD-NH 1080N DVR NVR HVR 3 IN 1 Network Digital Video Recorder
- 4 x AHD 1080P 2.0MP 1/3" inch indoor outdoor IR Day Night vision waterproof cameras
- 4 X 65feet(20m) cctv video cable for camera
- 1 x 12V/3000mA power adapter for cameras
- 1 x 12V/2000mA power adapter for DVR
- 1 X 1 to 4 power splitter Cable
- 1 X USB Mouse for DVR
- 1 X Software CD for DVR
- 1 X remote control for DVR
General Features:
| SKU | NO680ELAA4OFXOANPH-10032232 |
| Main material | ALUMINUM |
| Model | AHD-4CHKIT |
| Size (L x W x H cm) | 18 x 40 x 28 |
| Weight (kg) | 4.18 |
| Warranty period | 1 Month |
| Warranty type | Local Supplier Warranty |
